Kingmore Teardrop 12' Pallet Rack Uprights (15ga, 5"x8" Baseplate, 18,928 lb Cap. @ 48" Shelf Spacing )

H144" Kingmore Teardrop Upright Frames

Heavy-duty teardrop pallet rack uprights designed to provide reliable support for warehouse storage systems while maximizing valuable floor space. These industrial rack frames offer the strength and durability needed for palletized inventory, bulk storage, and commercial warehouse applications.

Manufactured from high-strength 15-gauge steel with welded frame construction, these uprights are built to handle demanding warehouse environments while maintaining excellent load capacities.

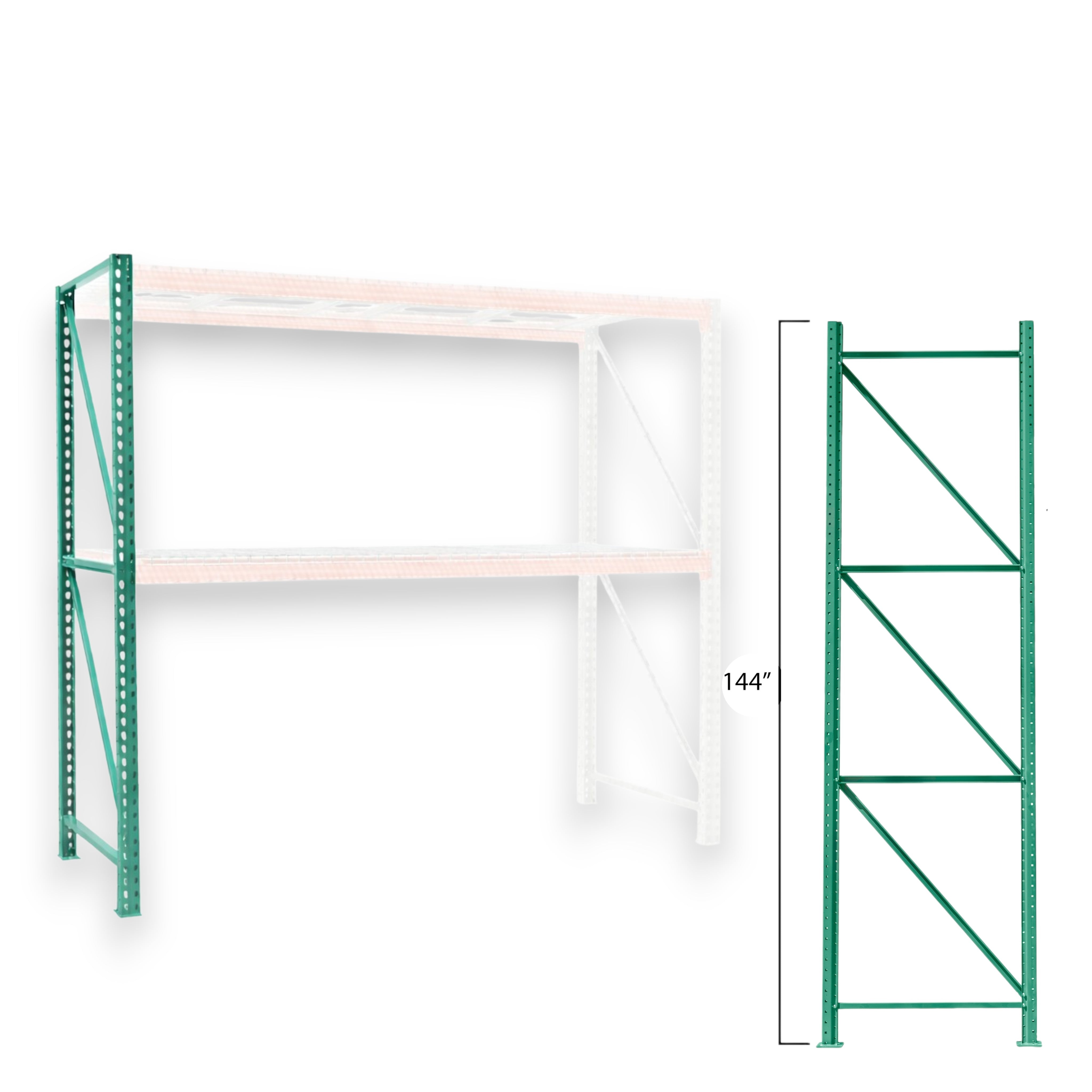

Use two uprights to create a new pallet rack section or one upright to expand an existing row of pallet racking as your storage needs increase.

Product Specifications

• Brand: Kingmore
• Height: 144" (12')
• Available Depths: 36", 42", or 48"
• Frame Gauge: 15 Gauge Steel
• Beam Connection: Teardrop Style
• Baseplate: 5" x 8" Welded Steel Baseplate
• Capacity: 18,928 lbs per frame at 48" beam spacing
• Finish: Powder Coated
• Compatibility: Works with most major teardrop pallet rack beam brands

Applications

Ideal for:

• Warehouse pallet racking systems
• Distribution centers
• Manufacturing facilities
• Inventory storage
• Commercial storage applications
• Industrial shelving systems

Features

✔ Available in 36", 42", and 48" frame depths

✔ Kingmore teardrop design

✔ 18,928 lb capacity at 48" beam spacing

✔ Durable 15-gauge steel construction

✔ 5" x 8" welded steel baseplates

✔ Compatible with most standard teardrop pallet rack beams

✔ Supports wire decking, pallets, and bulk storage

✔ Ideal for warehouse expansions and new installations

Complete Your Storage System

Pair these uprights with teardrop pallet rack beams and wire decking to create durable, high-capacity storage levels for palletized inventory and warehouse products.

Maximum Rated Capacity: 18,928 lbs per frame at 48" beam spacing. Capacity may vary based on beam spacing, rack configuration, seismic requirements, and installation conditions. Always consult load charts and local building requirements before installation.
